JC 24-HS

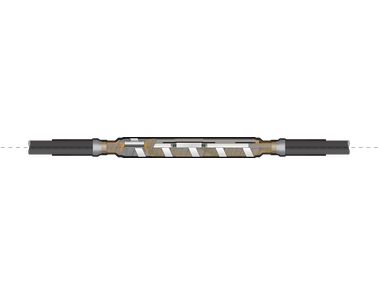

JC 24-HS Cold Shrink Straight Joint for 24 kV Cables

Key Features:

Quick Installation: The JC 24-HS features a pre-expanded joint body made of high-quality silicone rubber on a patented spiral support pipe, ensuring a fast and straightforward installation process.
Integrated Stress Control: Equipped with an integrated stress control system, this joint guarantees optimal performance and longevity.
Versatile Connection Options: Compatible with various conductor connector types, including screw type and hexagonal pressing, to suit your specific needs.
Compact Design: Only two sizes cover the application range from 50 mm² to 300 mm², making it adaptable to a wide range of cable specifications.

Technical Excellence:

High Voltage Endurance: Withstands up to 24 kV, ensuring reliable performance under high voltage conditions.
Robust Construction: Designed to endure partial discharges, alternating and direct withstand voltages, and impulse withstand voltages.
Thermal Short-Circuit Resistance: Built to handle thermal short-circuits up to 18.5 kA, ensuring safety and durability.
Electrical Heat Cycling: Successfully passed electrical heat cycling in air/water at 32 kV for 42 days, proving its resilience in harsh environments.

Scope of Delivery:

Joint Body: Made of durable silicone rubber.
Conductor Connector: Ensures secure and reliable connections.
Outer Heat Shrink Sleeve: Provides additional protection and insulation.
Assembly Instructions: Step-by-step guide for easy installation.
Accessories: Includes all necessary components for a complete installation.

Applications:

Ideal for use in electrical installations requiring high reliability and performance, the JC 24-HS Cold Shrink Straight Joint is perfect for both indoor and outdoor environments. Whether you're upgrading existing systems or installing new ones, this joint offers the flexibility and durability you need.
